FeBe Example

This chapter is presented in the spirit of the "hello world" example from the Kernighan and Ritchie "C" book [K&R 78]. It is being presented early, before the background necessary to properly understand it, so that those who prefer some concreteness upon which to hang abstract concepts can feel oriented. Those who prefer to first read about concepts and definitions should skip this chapter now and return to it later. This chapter refers to many later chapters; the reader should not expect to understand these until the Technical Overview has been read.

Fixed pitch font in this chapter was generated by capturing the messages exchanged between a frontend and a backend in an actual Udanax Green session. Each message from the frontend is preceded by a comment line beginning with "fe:", and each response from the backend by a line beginning with "be:".

The session consisted of: * bringing up the frontend and backend in the single user configuration on the standard example data structure file. (See the man-pages "backend(L)" and "intf(L)" in Appendix C.)

* the frontend starting, displaying a particular start document (referred to as Document A in the rest of this chapter),

* the user following a link from Document A to the document at the other end of that link (Document B), and

* the user quitting.

  The first thing the frontend and backend did was check whether they spoke the same protocol:

fe: Do you speak the prototype protocol? ¯

 P0~ be: Yes I speak the prototype protocol ¯

 P0~ Note that the lines right below "fe:" and "be:" were new-line characters (denoted by the symbol `¯') that were sent in the messages.

Because the frontend wished to speak the prototype protocol, it indicated this by sending some new-lines (at least one), followed by `P0~'. The prototype backend ignored all input until it got a new-line, and consumed as many new-lines as were there. Since it then found `P0~', it responded with a new-line followed by a `P0~'. If the prototype backend received anything other than `P0~' from the frontend, it would have returned new-line `P?~' and considered the session terminated. (If a future backend does not speak the prototype protocol, it will return something else and consider the session terminated. There is no reason to expect that any future frontend or backend will support the prototype protocol, but future products will support the above protocol for negotiating about what protocol they are speaking.) (See the section about metaprotocol in the man-pages "backend(L)" and "daemon(L)" in Appendix C.)



Having agreed that they were both speaking the prototype protocol, the frontend proceeded to open Document A:

fe: Can I have read-access to doc-A or a copy? 35~0.1.1.0.1.0.1~1~2~ be: You now have read-access to doc-A itself 35~0.1.1.0.1.0.1~

In the FeBe Protocol, tilde (~) and new-line (¯) are terminators, and are used to terminate each of the input and output arguments. (See the section "Lexical Definitions" in Appendix A.) Requests from the frontend always begin with a request number, followed by the arguments for that request. If the backend successfully responds (as above), the response consists of that same request number followed by result arguments.

Translated into the terminology of the syntax definition chapters (see the chapter "FeBe Protocol" and Appendix A: "FeBe Protocol Syntax"), the frontend said:

The backend responded with:

Note that we used the brackets () when speaking in the metasyntax as defined in Appendix A: "FeBe Protocol Syntax".


The frontend requested that the document with address 1.1.0.1.0.1 (Document A) be opened for reading. Addresses in Udanax Green consist of multi-part numbers which we call "tumblers". (See "Addressing" and "Tumbler Arithmetic".) Address 1.1.0.1.0.1 is a document id simply known to this frontend as a good starting point (much as a home directory under Unix). Because many tumblers sent in the protocol may have some number of leading zeros, the protocol uses a compressed format in which the first digit denotes the number of leading zeros to be appended to the rest of the digits to form the actual tumbler. For example, a `3.4.5' in the protocol would represent tumbler 0.0.0.4.5 (see the section "Lexical Definitions" in Appendix A).

The copy-on-conflict argument indicated to the backend that should it not be able to open Document A for this frontend (because, for example, someone else had it open for writing), then the backend should instead create a new version (a virtual copy), and open it. If the backend had made and opened a copy, it would have returned the id of the copy. Since, in the example, the backend returned the original id, the open succeeded on the requested document. (See the chapter "Versions".)

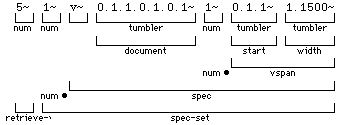

As seen below, the frontend next requested the first 1,500 characters of this document. It did so with a request of the form:

where vspan represented the part of the document starting at 1.1 extending for 0.1500. This indicated the interval from 1.1 inclusive to (1.1 + 0.1500) exclusive. As 1.1 + 0.1500 = 1.1501, the interval included all characters from location 1.1 up to but not including 1.1501, or, the first 1,500 characters in the document's data space. (See "Tumbler Arithmetic".)

The backend responded with:

Since there were only 553 characters in the data space of the document, only these were returned.

Note that the text of Document A (which follows) is a description of the Udanax Green Prototype Frontend commands. Also, the (¯) immediately following `t553~' is in fact the first character of the retrieved document.

fe: What's in doc-A starting at 1.1 for 0.1500?

5~1~v~0.1.1.0.1.0.1~1~0.1.1~1.1500~ be: The following 553 characters: 5~1~t553~¯

 Xanadu Front-End Commands¯

¯

 These are the commands that currently work.¯

¯

¯

 CURSOR CONTROL¯

¯

¯

 ^W or uparrow move up a line¯

 ^Z or downarrow move down a line¯

 ^A or leftarrow move back a character¯

 ^S or rightarrow move forward a character¯

¯

 ^R top of document¯

 ^F down one page¯

¯

¯

 LINK HANDLING¯

¯

 ^Y follow link¯

¯

 Link starting points are back-lit.¯

 Link destinations are underlined.¯

¯

 ^U return from following link.¯

¯

¯

 CONTROL¯

¯

 ^T exit program¯

¯

¯

¯

¯

 Follow this link to get to the index of documents¯ The frontend now had the full data space of Document A, but also needed the link connectivity information in order to properly display the document. The prototype frontend highlighted text to which links attached. (See "fex(L)" in Appendix C.) It requested this information by: where there was one spec in the spec-set; the spec's document id was 1.1.0.1.0.1; the spec contained one vspan; it started at 1.1 and extended for 1. Note that 1.1 + 1 = 2, and that therefore the interval indicated was from 1.1 inclusive to 2 exclusive. (This shows how tumbler arithmetic can easily specify infinite intervals: the above interval denotes the entire data space of the document no matter how big it is.) (See the chapters "Addressing" and "Tumbler Arithmetic".)

fe: What are all the end-sets in the data space of doc-A? 28~1~v~0.1.1.0.1.0.1~1~0.1.1~0.1~

 be: One from-set in doc-A starting at 1.504 for 0.49, one to-set starting at 1.2 for 0.6, no three-set

28~1~v~0.1.1.0.1.0.1~1~0.1.504~1.49~1~v~0.1.1.0.1.0.1~1~0.1.2~1.6~0~< /font> This meant there was a link from characters 504 through 552 (inclusive); there was a link to characters 2 through 7 (inclusive); but there was no link whose three-set included any of the characters in this document. Characters 504 through 552 were "Follow this link to get to the index of documents" above, which the frontend therefore highlighted in its display of the document.

To see if there was any more data in Document A to be retrieved, the frontend sent the request:

fe: How big are the spaces in doc-A? 1~0.1.1.0.1.0.1~ be: One space, starting at 1.1 for 0.553 1~1~0.1.1~1.553~ Essentially, the backend said that Document A contained 553 characters and no links. If the document had contained any links, then the response would have been of the form: where one of the vspans would have indicated the span starting at 2.1 for 0.number-of-links.

Back to our example: the user of the frontend had just moved to character 513 and hit the follow-link button. Character 513 was within the from-set of some link (as was known from the above retrieve-endsets request). The frontend needed to follow that link, so it had to determine what link or links contained that character as an end-set. It did this with the request: , where spec-setfrom was: , or, the single character at location 513 in the document. The other spec-sets were empty, which indicated no match-restrictions there.

fe: What are all the links from position 513 of doc-A 30~1~v~0.1.1.0.1.0.1~1~0.1.513~1.1~0~0~0~ be: Just one: link id 1.1.0.1.0.2.0.2.22 30~1~0.1.1.0.1.0.2.0.2.22~ The backend responded with: indicating that the links that matched the above query consisted solely of the link with id 1.1.0.1.0.2.0.2.22. This was the twenty-second link in the link-space of document 1.1.0.1.0.2 (see the chapter "Addressing"). From now on, we will refer to the document at address 1.1.0.1.0.2 as Document B.

Since only one link was involved, the frontend decided to follow that link. The frontend first inquired about the three-set of the link by sending:

fe: What is the three-end of the link attached to? 18~3~0.1.1.0.1.0.2.0.2.22~ be: It is attached to the first link of doc-B 18~1~v~0.1.1.0.1.0.2~1~0.2.1~1.1~ The backend responded: , or, the first link in Document B. This indicated the link's type, which the frontend used to decide how to display the action of following the link. (See the chapter "Links and Link Types".)

Then the frontend inquired about the to-end of the same link:

fe: What is the to-end of the link attached to? 18~2~0.1.1.0.1.0.2.0.2.22~ be: To the first fifty-seven characters of doc-B 18~1~v~0.1.1.0.1.0.2~1~0.1.1~1.57~ The backend responded that the to-set of this link consisted of the first fifty-seven characters of Document B. As this was the document at the other end of the link we followed, we needed to display it. The sequence of requests to retrieve the contents and links of Document B followed the same pattern as for Document A.

First we opened it:

fe: Can I have read-access to doc-B or a copy? 35~0.1.1.0.1.0.2~1~2~ be: You now have read-access to doc-B itself 35~0.1.1.0.1.0.2~ Then we asked for the first 1500 characters. As before, this document contained less than 1500 characters - in this case, 875.

fe: What are in the first 1500 locations of doc-B? 5~1~v~0.1.1.0.1.0.2~1~0.1.1~1.1500~ be: The following 875 characters: 5~1~t875~To read the document, follow the link associated with it.¯

¯

 Documents :¯

¯

 the intro¯

¯

 this index¯

¯

 the brochure for this demonstration¯

¯

 a description of the Xanadu System for DBMS devotees¯

¯

 a pretty-picture program:¯

¯

 source code¯

¯

 documentation¯

¯

 output¯

¯

 a some correspendence¯

¯

 letter¯

¯

 memo1¯

¯

 memo2¯

¯

 reply¯

¯

¯

 propoganda¯

¯

 xudescroff¯

¯

 overview¯

¯

 outln¯

¯

 feidoc¯

¯

 glossary¯

¯

 addresses¯

¯

 formats.bnf¯

¯

 xuinfo.bnf¯

¯

 requestlist¯

¯

 spanstuff¯

¯

 tumblers¯

¯

 Computer Lib/Dream Machines¯

¯

 Business plan:¯

 Bizplan1¯

 Bizplan2¯

 Bizplan3¯

 Bizplan4¯

 Bizplan5¯

 Bizplan6¯

 Bizplan7¯

 Bizplan8¯ Then the frontend did a for the data space of the document:

fe: What are all the end-sets in the data space of doc-B? 28~1~v~0.1.1.0.1.0.2~1~0.1.1~0.1~¯ be: Here they are: 28~1~v~0.1.1.0.1.0.2~31~0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~0.1.1~ 1.1~0.1.1~1.1~0.1.75~1.9~0.1.102~1.35~0.1.143~1.11~0.1.232~ 1.11~0.1.253~1.13~0.1.276~1.6~0.1.317~1.6~0.1.333~1.5~0.1.348~ 1.5~0.1.363~1.5~0.1.447~1.4~0.1.492~1.6~0.1.542~1.9~0.1.569~ 1.11~0.1.682~1.8~0.1.694~1.12~0.1.707~1.14~0.1.748~1.8~0.1.765~ 1.8~0.1.782~1.8~0.1.799~1.8~0.1.799~1.8~0.1.816~1.8~0.1.833~ 1.8~0.1.850~1.8~0.1.867~1.8~1~v~0.1.1.0.1.0.2~6~0.1.1~1.57~ 0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~1~v~ 0.1.1.0.1.0.2~5~0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~0.1.1~1.1~< /font>¯ The backend responded with: where:

spec-setfrom is: `1~' * [`v~' iddoc-B `31~'* [vspan]]

spec-setto is: `1~' * [`v~' iddoc-B `6~'* [vspan]]

spec-setthree is: `1~' * [`v~' iddoc-B `5~'* [vspan]]

This response informed the frontend of the thirty-one spans in Document B which were in the from-space of some link, the six spans which were in the to-space of some link, and the five spans which were in the three-space of some link. For example, the from-span starting at 1.75 for 0.9 denoted that the text `the intro' was in the from-space of (at least) one link, and therefore that the user could follow it to more material.

Finally, the user told the frontend to quit; the frontend in turn asked the backend to quit; the backend informed the frontend that it had quit; and the session was terminated.

fe: I'm ready to quit, how about you? 16~ be: Sure, goodbye. 16~
